Fronius SnapINverter for commercial
PV systems

Optimizing costs with Fronius inverters

For larger photovoltaic systems it is particularly important to keep the running costs (OPEX) as low as possible and to maximize the yield as much as possible. This results in shorter payback periods and high returns (a higher return on investment) – to the delight of every investor.

By using Fronius inverters, an economically viable PV system can be implemented even under complex system conditions . Thanks to the Superflex Design feature of Fronius Symo , even complex plans with different roof pitches or shading are not a problem.

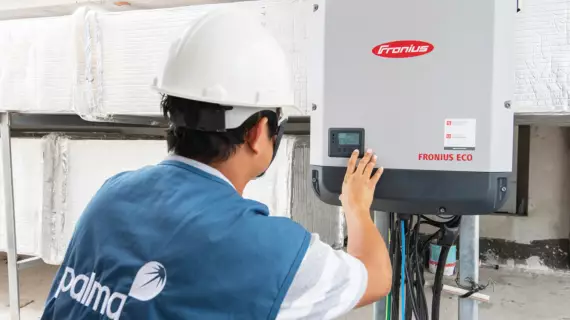

For simple freestanding or roof systems , you can use the Fronius Eco to design and implement the system in a cost-optimized way.

Combine smart & cost-optimized

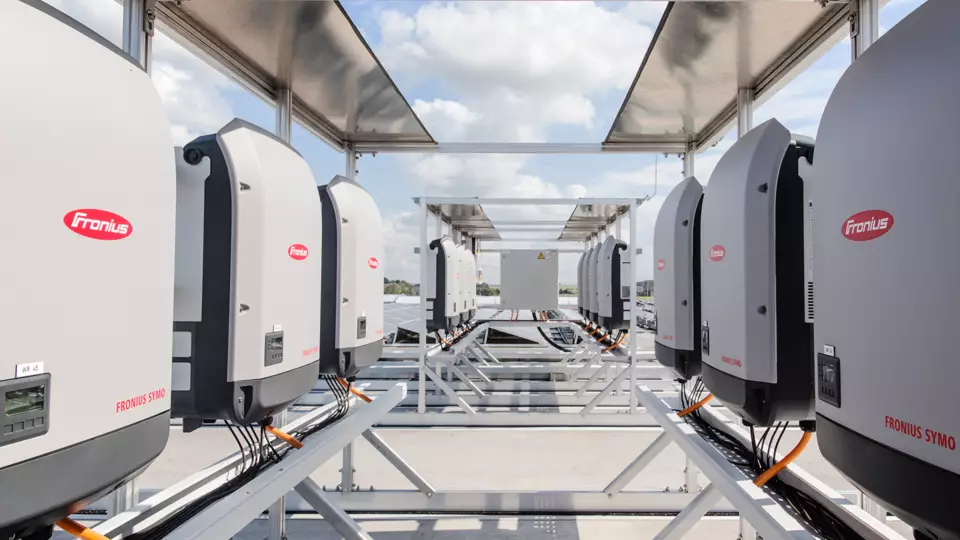

A combination of Fronius Symo and Fronius Eco makes sense for most small to medium-sized commercial PV systems.

This is because small sections of the PV system are usually shaded or have a different orientation .

While these more complicated strings are covered by the Fronius Symo , the majority of the PV surface can be covered by the Fronius Eco in a highly cost-optimised manner.

PC board replacement

The option of on-site PC board replacement means that service calls can be carried out quickly and cost-effectively by just one person. This means that in most cases only individual components need to be replaced, rather than the entire device.

Our Fronius Solar.SOS service app helps ensure that everything runs smoothly. Active participation in the Fronius Partner program is a prerequisite for PC board replacement.

Proven SnapINverter technology

Fronius SnapINverters are characterized by intelligent device design , maximum flexibility and smart functions.

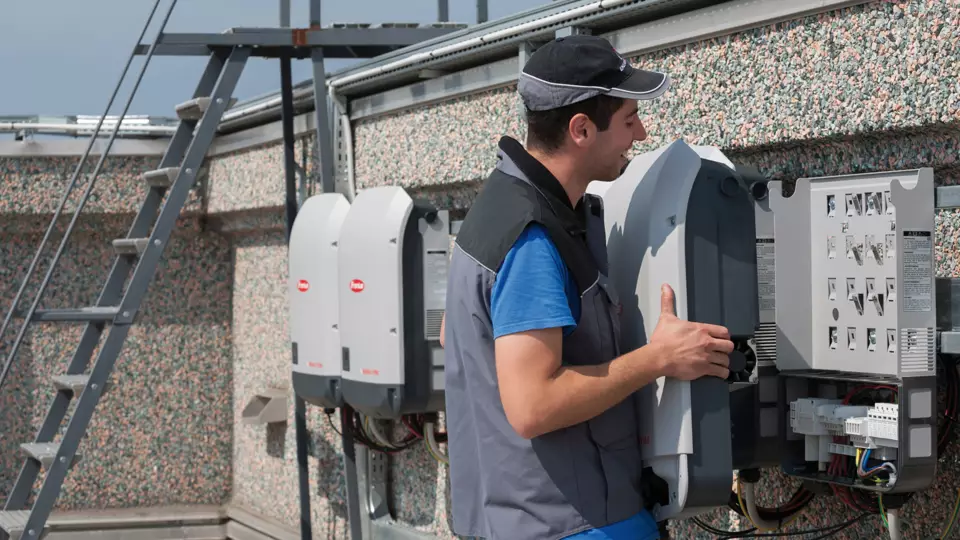

  • Easy installation: Simply swing the inverter into the wall bracket.
  • Uniform design: Once you are familiar with one model, you can easily install others too.
  • Highest service quality: Easily accessible interfaces, remote updates and the PC board replacement process ensure quick and easy servicing.
  • Easy to use: Integrated data communication and online monitoring through Fronius Solar.web.
  • Future-proof: Open interfaces ensure the easy integration of third-party components – today and in the future.

Features at a glance

Active cooling technology
  • Prolongs the life of the inverter
  • Enables flexible system design & easy installation
  • Assists with yield optimization
Superflex Design
  • Enables maximum flexibility in system design
  • Different roof orientations and shading of strings do not pose any problems
Zero feed-in
  • Feed-in management from 0 - 100%
  • Compliance with all requirements of network operators
  • Simple adjustment via the inverter interface
Integrated data communication
  • Easy connection of the inverter to the Internet via LAN/WLAN
  • Data logging, WLAN, Ethernet, energy management, web server and numerous interfaces fully integrated
  • Connection to third-party components by means of interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON)
Dynamic Peak Manager
  • MPP tracking algorithm with a tolerance for shading
  • Maximum yields even in the case of partial shading
  • In many cases, power optimizers are not needed
  • empty
    empty
    empty
Snapinverter Technology
  • Innovative mounting system
  • Easy installation and maintenance
  • Components can be exchanged instead of replacing the device during servicing
  • empty
    empty
    empty
    empty
    empty

Technical data

Technical data Eco Symo UL Symo Advanced UL Symo Advanced
Power category in kW 25/27 15 10 - 24 10-20
Mains connection (Uac, r) 3~ NPE 400/230, 3~ NPE 380/220 V 3~ NPE 208/220 V
3~ NPE 208-240 V
3~NPE 400/230, 3~NPE380/220 V
Number of MPP trackers 1 1 2 2
DC input voltage range 580 - 1,000 V 325 - 1,000 V 200 - 600 V 200 - 1000 V
Oversizing 150% 150% 150% 150%
Dimensions in mm 725 x 510 x 225 725 x 510 x 225
725 x 510 x 225
725 x 510 x 225
Weight 35.7 kg 35.52 kg
41.68 kg
32 kg
