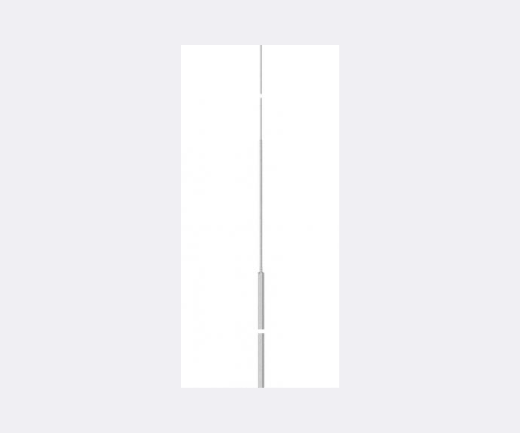

isFang air-termination rod

Item no. 5402864 | EAN 4012195674733

SPECIFICATION

Product description
  • Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
  • Tapered air-termination rod
  • Suitable for 40 mm isFang tripod stand and isFang support systems
Technical data
Dimension Material Nominal size Ø Version for
4000mm Aluminium 40/ 16/ 10 mm Air-termination rod with stand

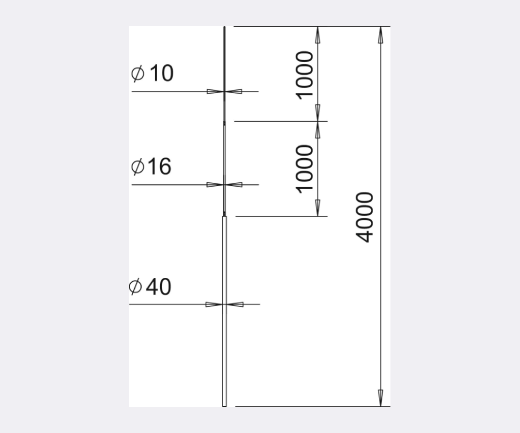

Dimensions
Dimension B Dimension D Dimension H Length
2000 mm 1000 mm 1000 mm 4000 mm
Types
Types Length Nominal size Ø Item no.
101 3B-4000 4000 mm 40/ 16/ 10 mm 5402864
101 3B-8000 8000 mm 5402880
System accessories
Products Types Item no.

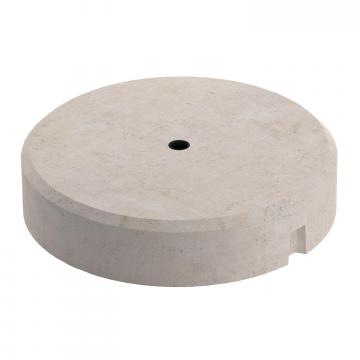

Concrete base for FangFix system, min. 16 kg F-FIX-S16 5403227

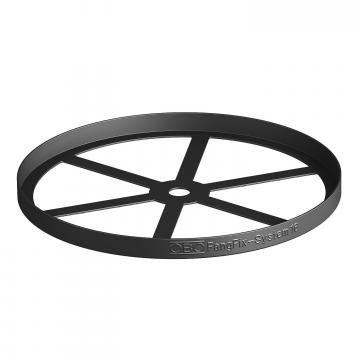

Base for FangFix system 16 kg for mounting the isFang tripod F-FIX-B16 3B 5403238

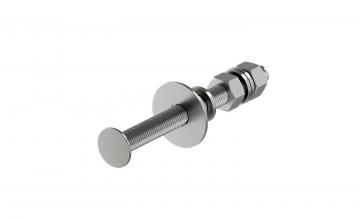

isFang-3B threaded rod isFang 3B-G2 5408972
