Mounting systems for PV systems
Since 2004, K2 has been developing forward-looking and highly functional mounting system solutions for worldwide photovoltaic systems.
Our portfolio covers almost the entire spectrum of possible roof coverings and soil classes. All products are easy to install, robust and safe. The systems are designed in our own development department and adapted to the constantly changing market conditions and country specifications. We are happy to plan projects that cannot be served by our standard range individually for you.
Quick and low-cost with direct lateral connections to the rail without additional components including customised height adjustment
Secure snap-in assembly – without needing to be screwed to the base plate
In combination with SingleHook roof hooks, SingleRail forms a powerful and multi-talented team
System variants
We offer roof hooks for almost all clay tiles, pantiles and concrete tiles. 80% of all applications can be solved with our SingleHook 3S or 4S. 80% of all applications can be solved with our SingleHook 3S or 4S.
They are available in many different lengths in diameters M10 and M12. They are all equipped with a seal and have an abZ in Germany.

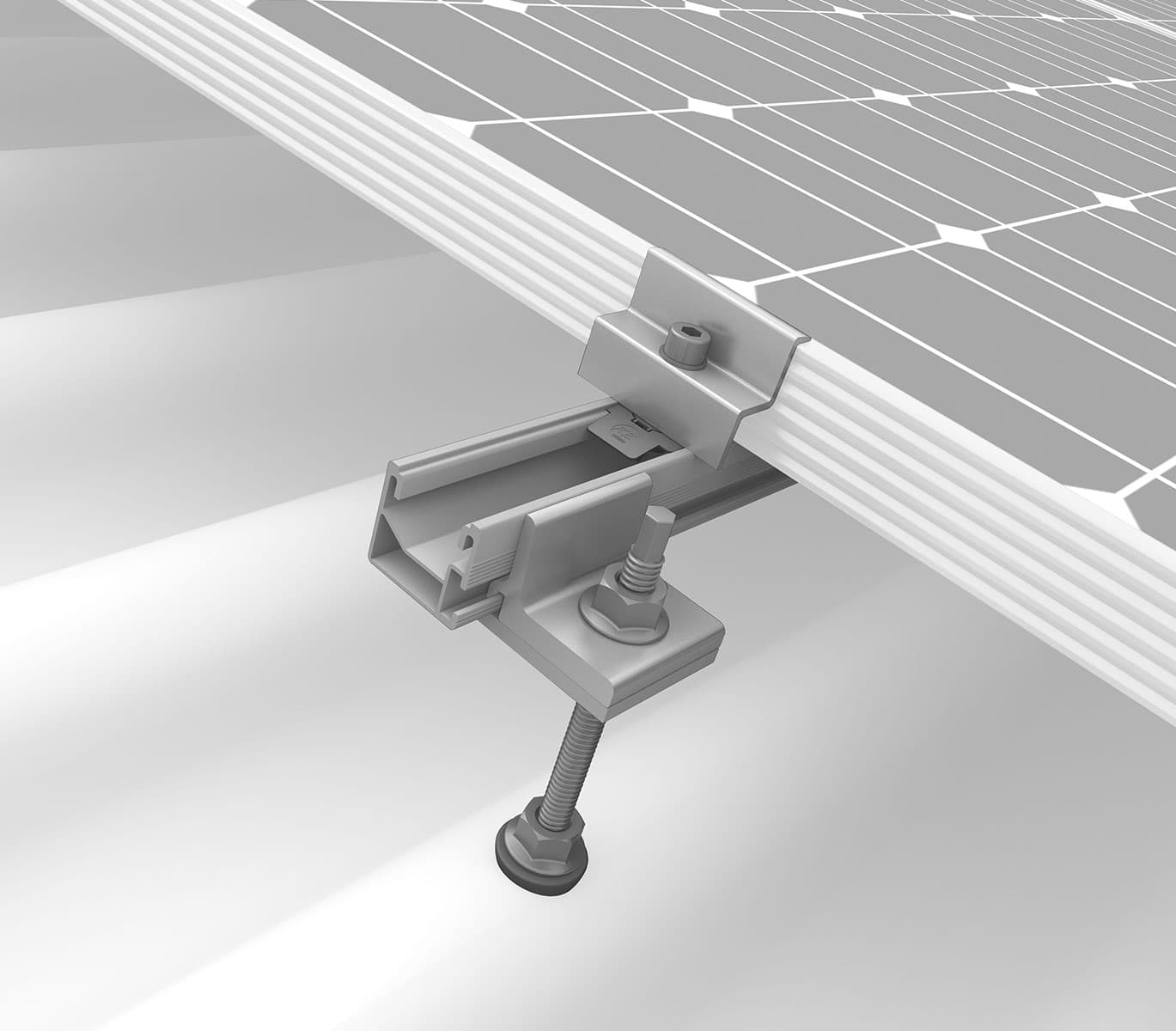

For corrugated roofing, such as Eternit, we offer hanger bolts for wooden substructures.
Nihil anim keffiyeh helvetica, craft beer labore wes anderson cred nesciunt sapiente ea proident. Ad vegan excepteur butcher vice lomo. Leggings occaecat craft beer farm-to-table, raw denim aesthetic synth nesciunt you probably haven't heard of them accusamus labore sustainable VHS.
We offer various clamps for the area of sheet metal seam roofing. This allows you to build PV systems on almost all of these roofs.
The following profile types are possible: double standing seam, angled seam, snap seam and round seam (Bemo, Kalzip, Aluform, Rib-Roof Evolution).
Product information

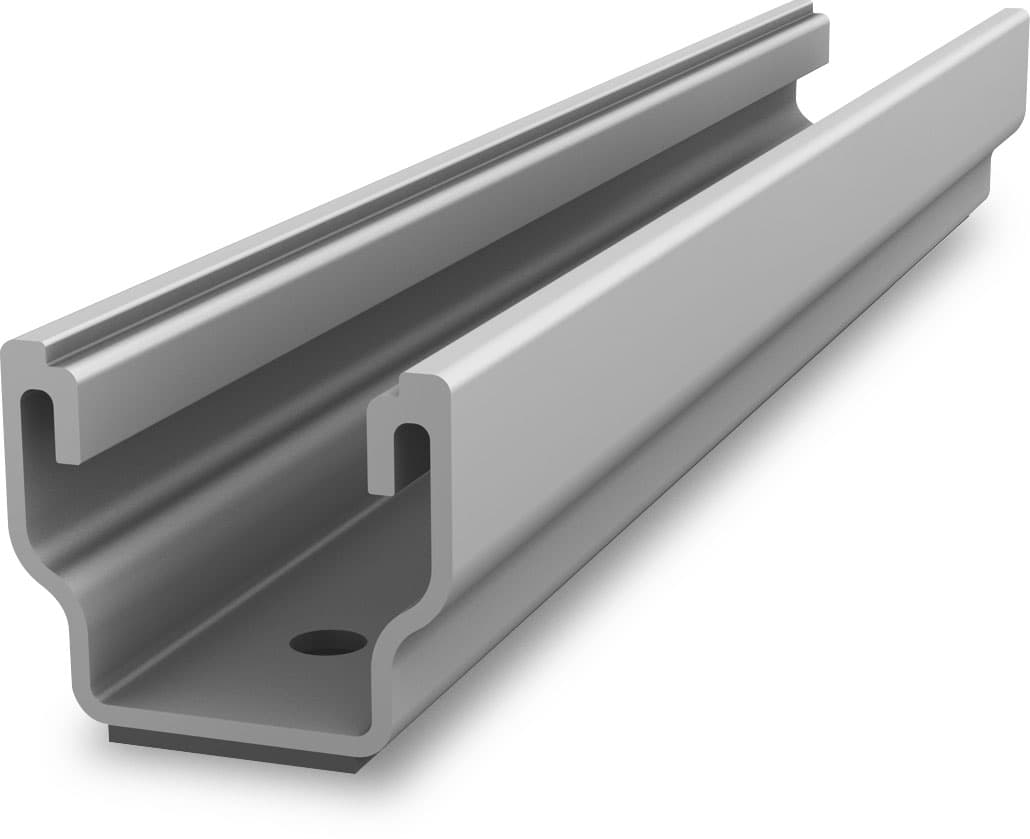

Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
TECHNICAL PARAMETERS
| HEIGHT [MM]: | 32 |
| LENGTH [M]: | 0.25 |
| MOUNTING SYSTEMS: | K2 MultiRail System |
| SCOPE OF APPLICATION: | 5Pitched Roof |
| SURFACE: | Aluminium mill |
| WIDTH [MM]: | 39 |
| COMPONENT TYPE: | Mounting rail |
