Product Introduction

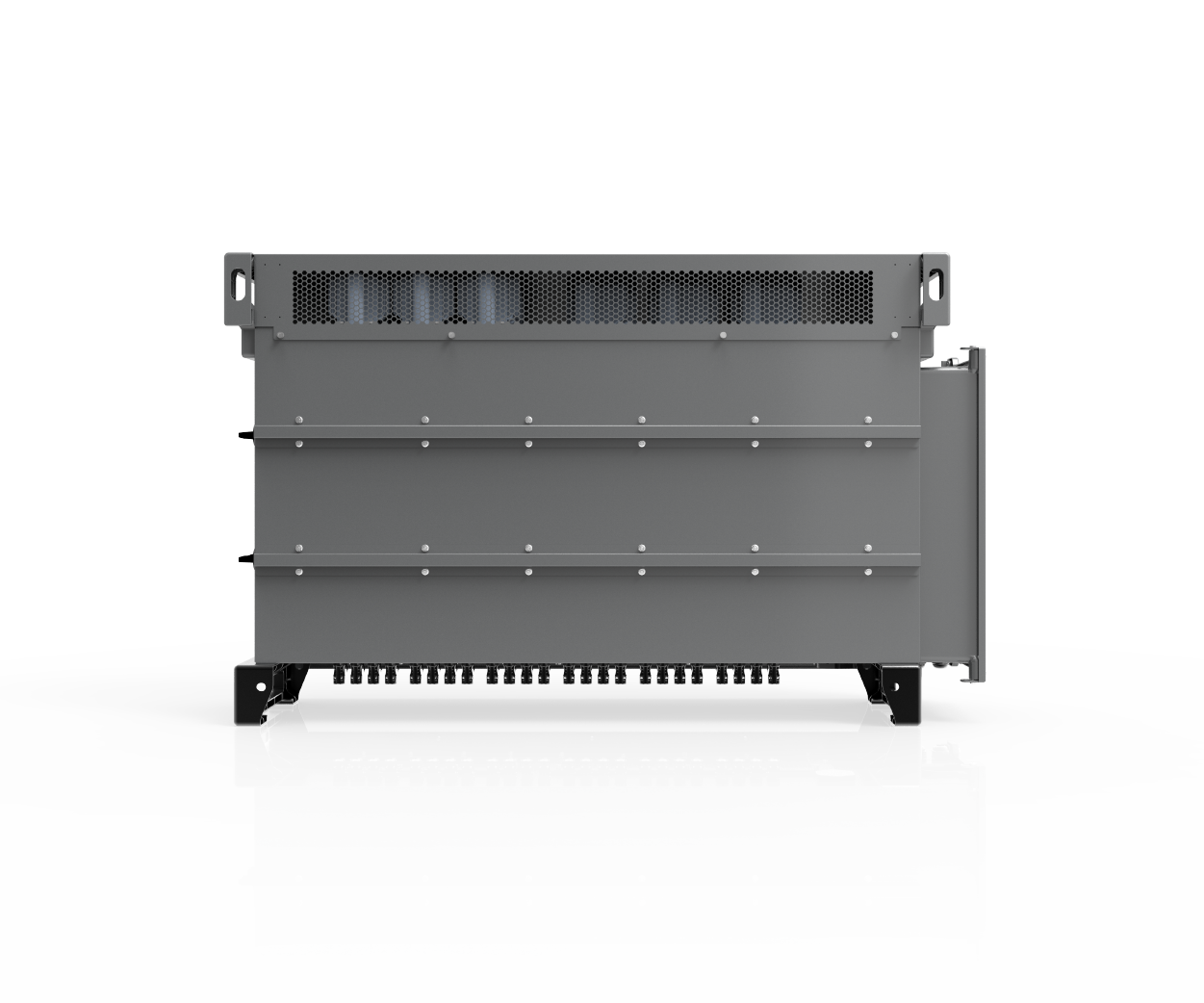

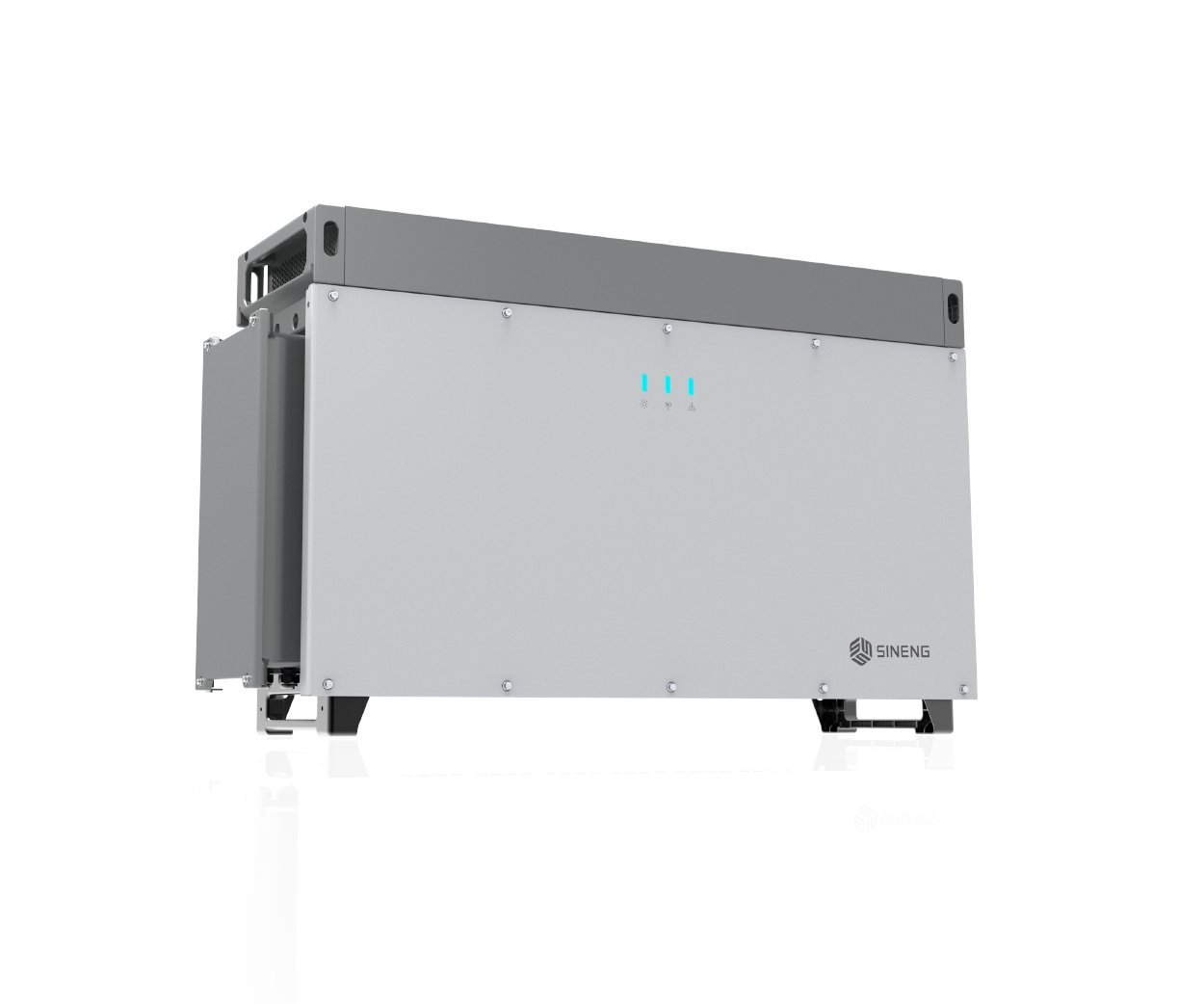

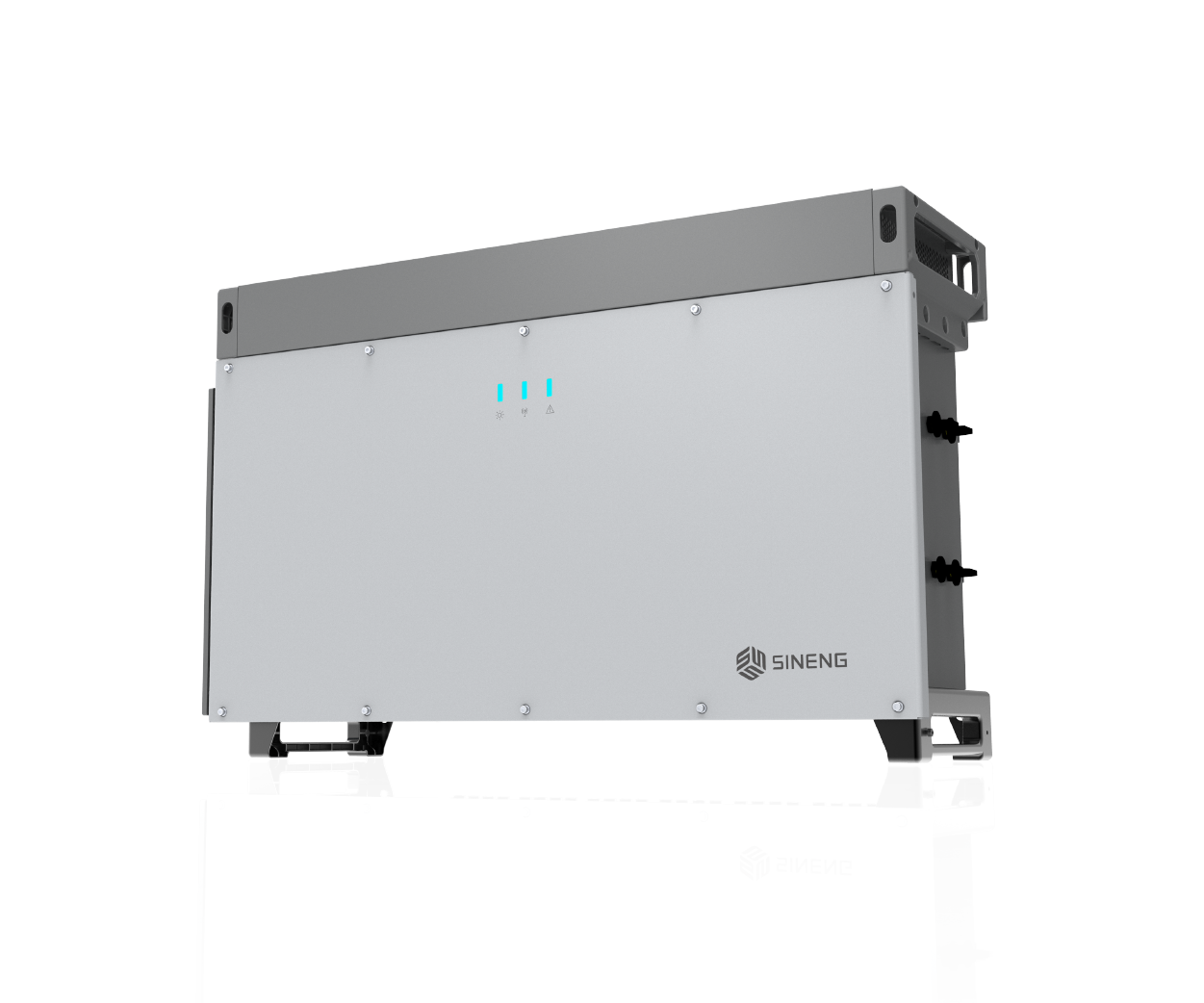

SP-275K-H1
- Max. efficiency 99.02%, Euro efficiency 98.80%
- Max. string current 20A, compatible with various modules
- 12 MPPTs, optimum mismatch loss
- DC/AC ratio up to 1.8, lower LCOE
- Modular design, smart O&M
TECHNICAL PARAMETERS
| Max. PV input voltage | 1500V |
| MPPT Max. input current | 40A*12 |
| Rated input voltage | 1080V |
| MPP voltage range | 500~1500V |
| MPP voltage range for nominal power | 880~1300V |
| Number of MPPT trackers | 12 |
| Max. number of PV strings per MPPT 1500V 40A*12 1080V 500~1500V 880~1300V 12 |
2 |
| Rated output power | 275kW @ 30℃, 250kW @ 45℃, 225kW @ 50℃ |
| Max. output power | 275kW |
| Rated grid voltage | 800V |
| Grid voltage range | 680~880V |
| Max. output current | 198.5A |
| Rated grid frequency / range | 50Hz / 45~55Hz, 60Hz / 55~65Hz |
| Output current harmonic (at nominal power) | <3% |
| Power factor at nominal power / range | >0.99 / 0.8 leading to 0.8 lagging |
| DC reverse connection protection | Yes |
| Overvoltage protection | DC Type II / AC Type II |
| Leakage current protection | Yes |
| Grid monitoring | Yes |
| Insulation monitoring | Yes |
| Anti-island protection | Yes |
| Max. efficiency | 99.02% |
| EU efficiency | 98.80% |
| Isolation method | Transformerless |
| Self-consuming in night | <3.5W |
| Protection level | IP66 |
| Noise | <60dB |
| Temperature | -30℃～+60℃ |
| Allowed humidity (non condensing) | 0-100% |
| Cooling mode | Temperature controlled forced air cooling |
| Max.operating altitude | 5000m (＞4000m derating) |
| Communication port | Standard: PLC; Optional: RS485 |
| Dimensions (W×H×D) | 1180×733×350mm |
| Weight | 130kg |
