Product Introduction

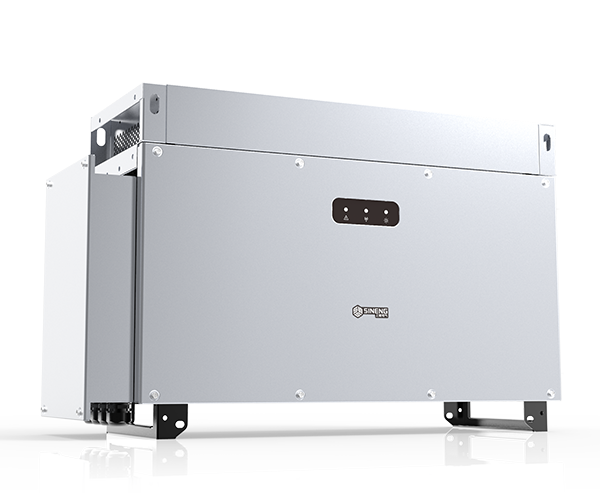

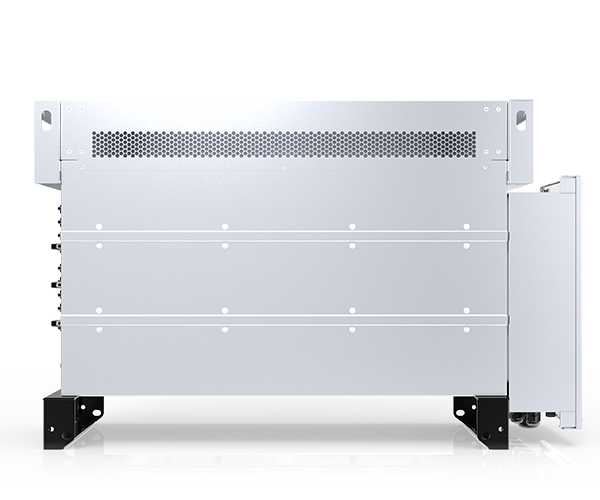

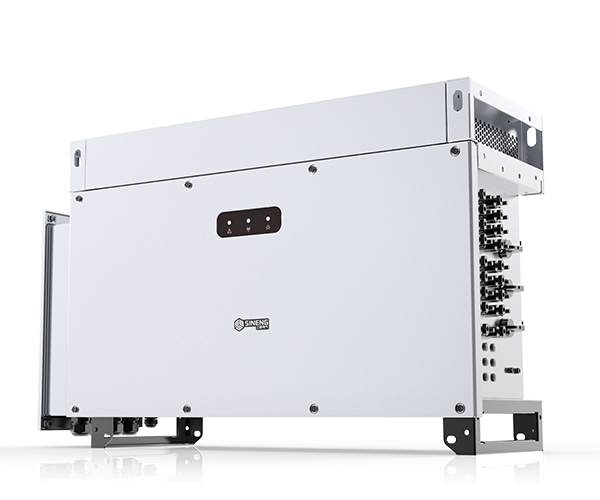

SP-120K-BL
- IP66 protection &C5 anti-corrosion rating
- 10 MPPTs design, adaptive to multi-direction rooftop
- String current 15A, compatible with high power & bifacial modules
- String-level IV curve scanning, precise positioning of failures
- Built-in PID repair module, reducing PV modure power attenuation
TECHNICAL PARAMETERS
| Max. PV input voltage | 1100V |
| Max. input current | 30A*10 |
| Rated input voltage | 600V |
| MPP voltage range | 200~1000V |
| MPP voltage range for nominal power | 550~850V |
| Number of MPPT trackers | 10 |
| Max. number of PV strings per MPPT | 2 |
| Rated output power | 120kW @ 40℃, 110kW @ 45℃, 100kW @ 50℃ |
| Max. output power | 121kW |
| Rated grid voltage | 380V / 400V |
| Grid voltage range | 340~440V |
| Max. output current | 184A @ 400V |
| Rated grid frequency / range | 50Hz / 45~55Hz, 60Hz / 55~65Hz |
| Output current harmonic (at nominal power) | <3% |
| Power factor at nominal power / range | >0.99 / 0.8 leading to 0.8 lagging |
| DC reverse connection protection | Yes |
| Overvoltage protection | DC Type II / AC Type II |
| Leakage current protection | Yes |
| Grid monitoring | Yes |
| Insulation monitoring | Yes |
| Anti-island protection | Yes |
| Max. efficiency | 99.00% |
| EU efficiency | 98.50% |
| Isolation method | Transformerless |
| Self-consuming in night | <3.5W |
| Protection level | IP66 |
| Noise | <60dB |
| Temperature | ﹣30℃～+60℃ |
| Allowed humidity (non condensing) | 0-100% |
| Cooling mode | Temperature controlled forced air cooling |
| Max. operating altitude | 4000m (＞3000m derating) |
| Communication port | Standard: RS485, Optional: WIFI |
| Dimensions (W×H×D) | 1018×630×339mm |
| Weight | 85kg |
