Product Introduction

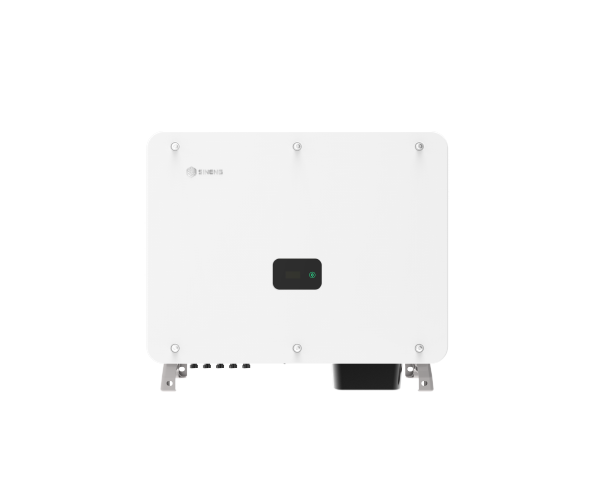

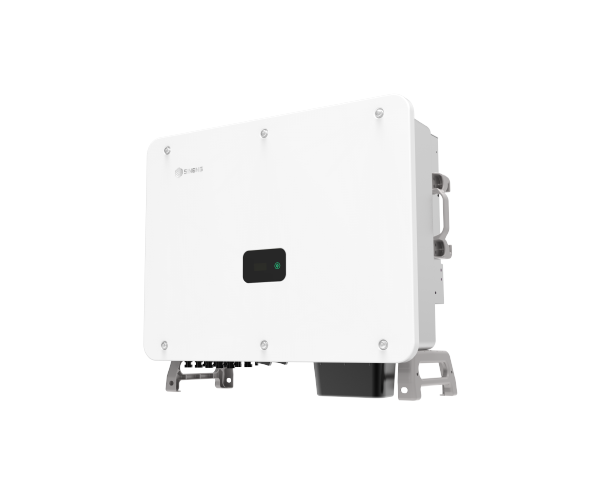

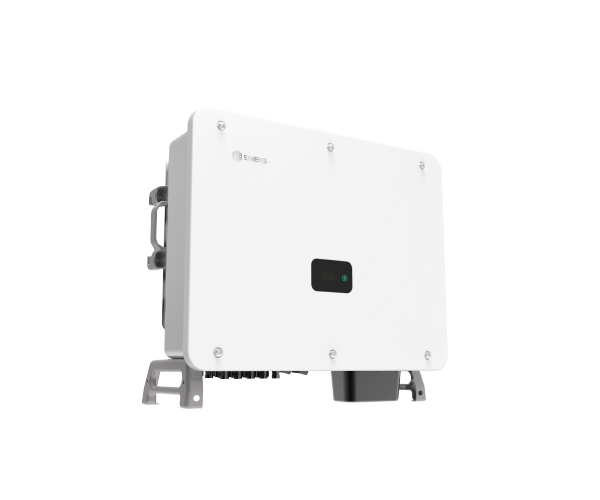

SN50/60PT
- 16/20A Maximum DC Input current per string
- IP66 protection & C5 anti-corrosion rating
- Type II SPD，both DC & AC parts
- Plant monitoring qiuckly create via APP
- 1.1 times continuous output overload
TECHNICAL PARAMETERS
| Max. PV input voltage | 1100V |
| Max. input current | 32A*5 (50K); 32A*4 + 40A (60K) |
| Rated input voltage | 620V |
| MPP voltage range | 200~1000V |
| MPP voltage range for nominal power | 520~850V |
| Number of MPPT trackers | 5 |
| Max. number of PV strings per MPPT | 2 |
| Rated output power | 50/60KW |
| Max. output power | 55/66KVA |
| Rated grid voltage | 400V |
| Grid voltage range | 320~480V (According to local standards) |
| Max. output current | 79.4/95.7A |
| Rated grid frequency | 50/60Hz |
| Output current harmonic (at nominal power) | <3% |
| Power factor at nominal power / range | >0.99/0.8 leading to 0.8 lagging |
| DC reverse connection protection | Yes |
| Overvoltage protection | DC Type II/AC Type II |
| Leakage current protection | Yes |
| Grid monitoring | Yes |
| Insulation monitoring | Yes |
| Anti-island protection | Yes |
| Max. efficiency | 98.60% |
| EU efficiency | 98.30% |
| Isolation method | Transformerless |
| Self-consuming in night | <1W |
| Protection level | IP66 |
| Temperature | -30℃～+60℃ |
| Allowed humidity (non condensing) | 0-100% |
| Cooling mode | Smart air cooling |
| Max.operating altitude | 4000m (＞3000m derating) |
| Communication port | WIFI/4G |
| Dimensions (W×H×D) | 675×590×275mm |
| Weight | 50kg |
