Product Introduction

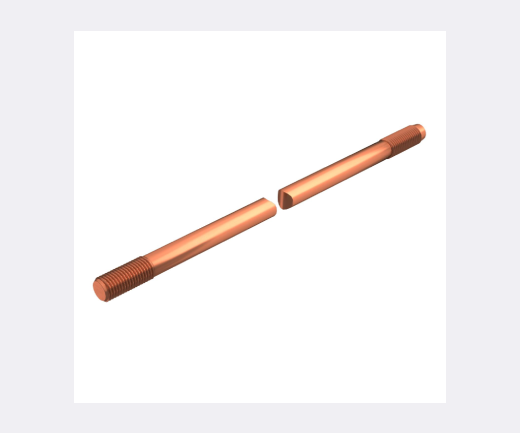

Earth rod BS with copper sheath
Item no. 5450006 | EAN 4012197262426
SPECIFICATION
Product description
- Made of steel with a copper jacket of min. 0.25 mm
- With thread for linking together
- Tensile strength min. 600 N/mm²
- Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data
| Dimension | External diameter | Material | Profile type | Surface |
| 14,2mm 5/8 | 14,2 mm | Steel | Miscellaneous | Copper-plated |

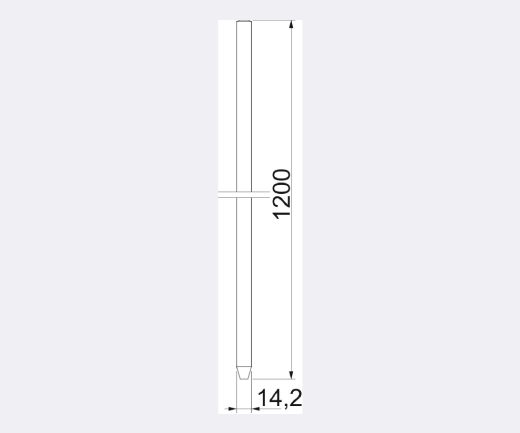

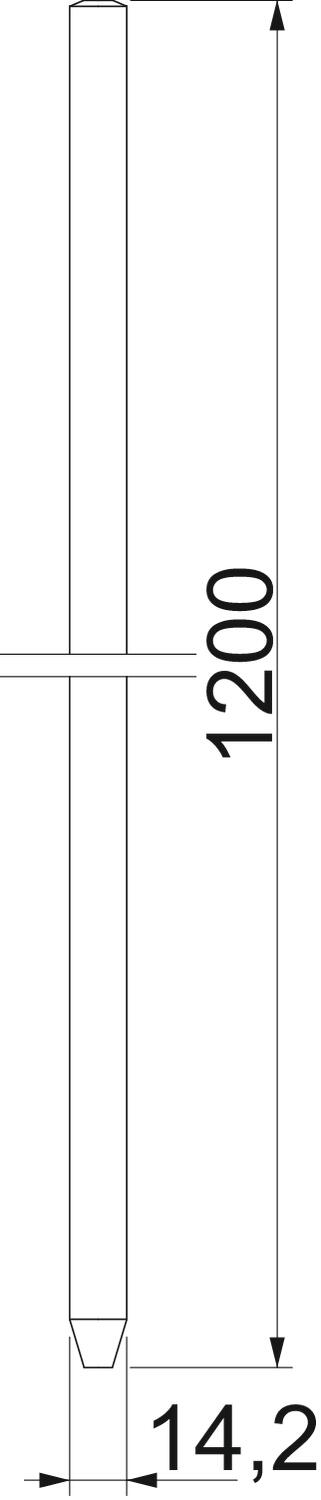

Dimensions
| Dimension D | Length |
| 16 mm | 1200 mm |
Types
| Types | Length | External diameter | Material | Item no. |
| 14,2 1200 CBER | 1200 mm | 14.2 mm | Steel | 5450006 |
| 14,2 1500 CBER | 5450007 | |||
| 17,2 1500 CBER | 5450015 |
Catalogues & Flyers
(Guide) Earthing Systems
Instructions and Aid
(Selection aid) Selection aid for foundation and ring earthers according to DIN 18014
Product images

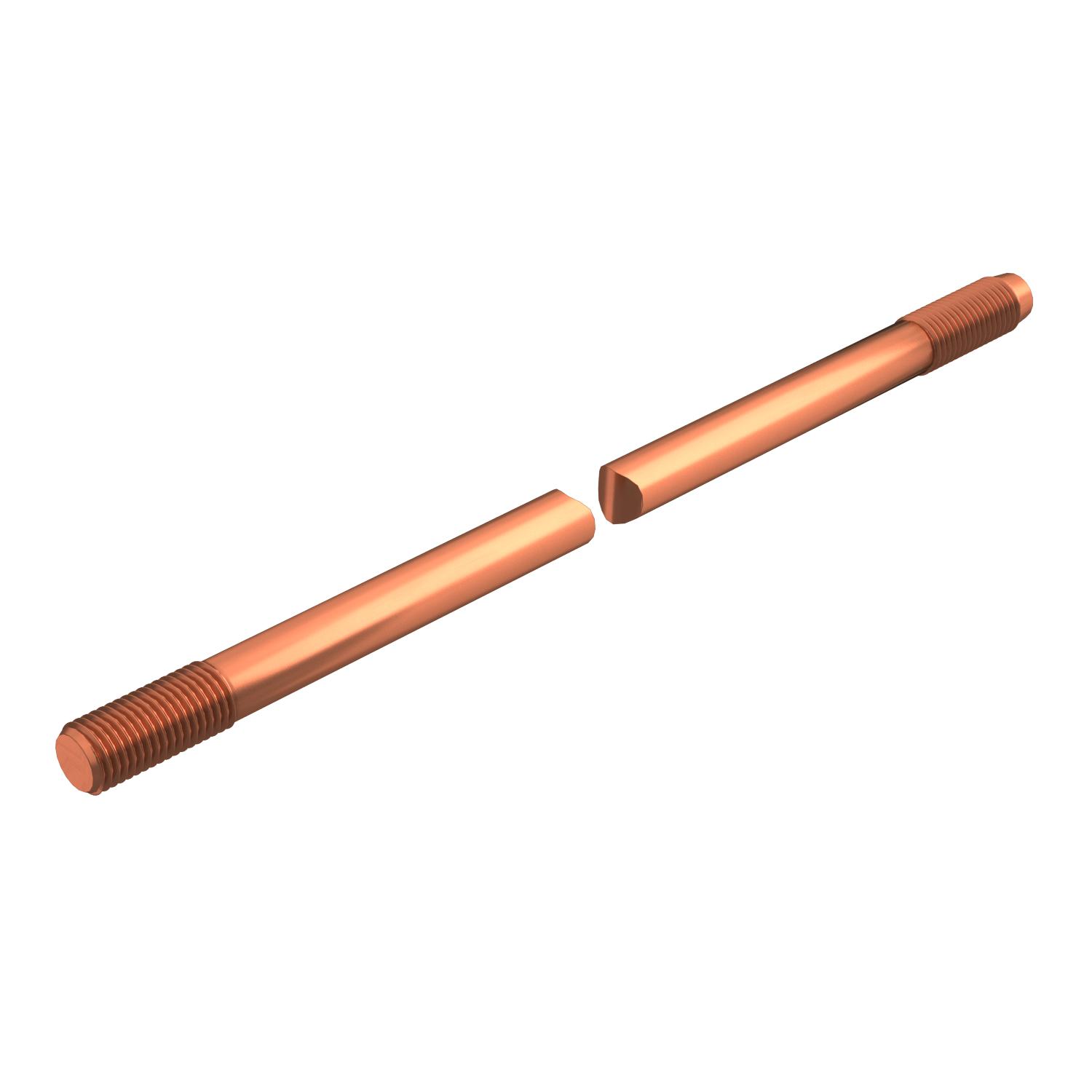

(Product graphic) 14,2 1200 CBER / 5450006
