610W

Module Power

22.60%

Module Efficiency

12Year

Product Warranty

30Year

Power Warranty

Core Advantages

Reliable upgrade, leading warranty

With the optimization of high-quality silicon wafers, cells, and module packaging design, Hi-MO 7 offers a linear power warranty with an annual degradation rate of up to 0.4%.

Significant improvement in power generation performance

Due to its higher bifacial ratio of approximately 80%, superior power temperature coefficient of -0.28%/℃, Compared to mainstream bifacial module currently available on the market, it can achieve a power generation gain of up to 3%.

BOS cost savings

Compared to mainstream products, Hi-MO 7 offers a power increase of approximately 4.5%, which can result in increased installation capacity and overall savings on brackets, inverters, cables, land, and AC side equipment per watt.

Operation and Maintenance cost savings

The improved efficiency of Hi-MO 7 effectively reduces the cost of equipment, module cleaning, land rental, maintenance, etc.

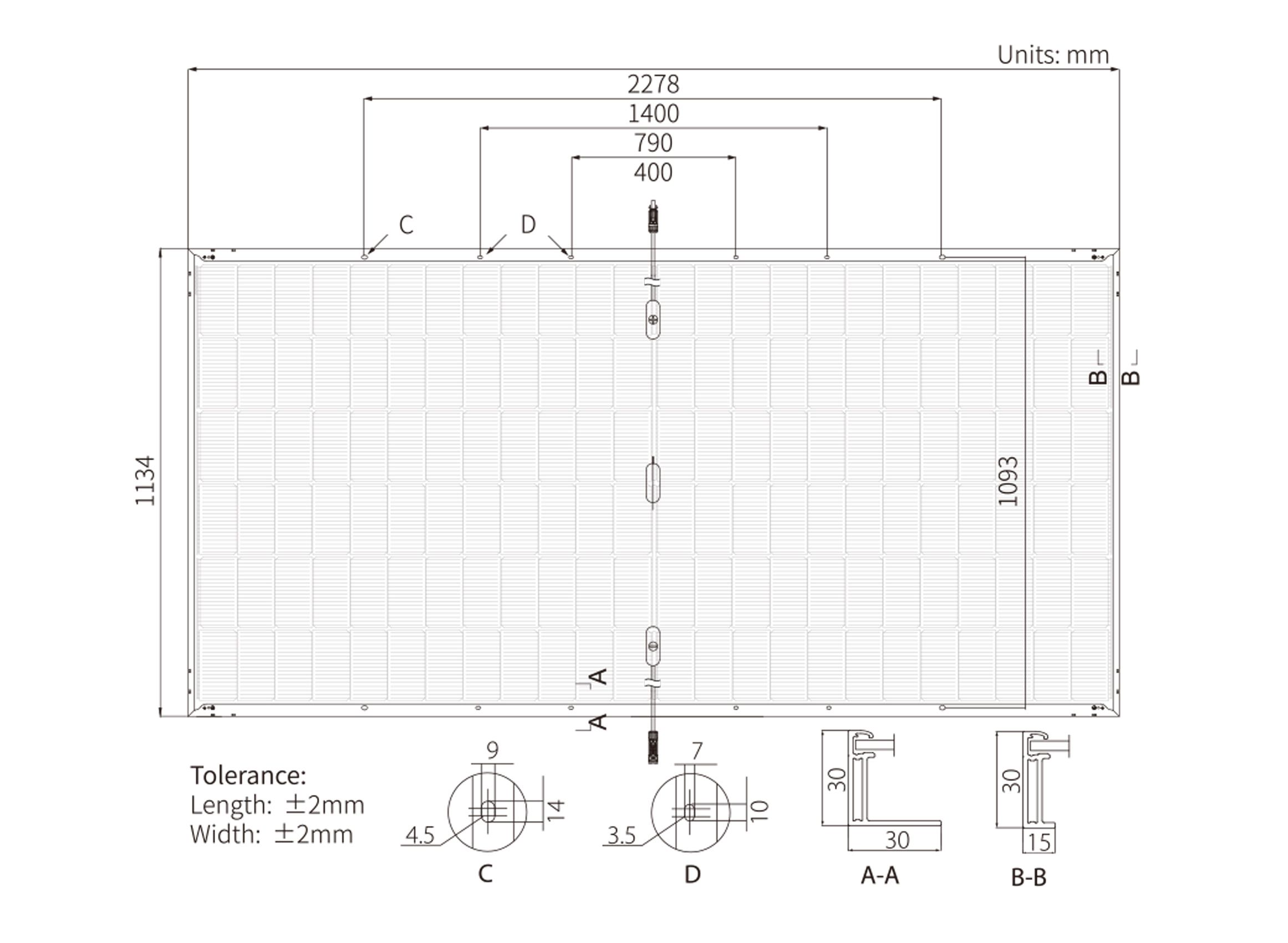

Detail Parameters

Mechanical Parameters

Layout 144（6×24）
Junction box Split junction box, IP68, 3 diodes
Weight 31.8kg
Size 2278×1134×30mm
Packaging 36pcs./pallet
144pcs./20GP
720pcs./40 HC

Electrical Performance Parameters (STC Test)

Module Model LR7-72HGD-605M LR7-72HGD-610M LR7-72HGD-615M LR5-72HGD-620M
Maximum power (Pmax/W) 605 610 615 620
Open-circuit voltage (Voc/V) 52.44 52.55 52.66 52.77
Short circuit current (Isc/A) 14.61 14.61 14.77 14.85
Peak power voltage (Vmp/V) 44.00 44.11 44.22 44.33
Peak power current (Imp/A) 13.75 13.83 13.91 13.99

STC: Standard test conditions

Electrical Performance Parameters (NOCT Test)

Module Model LR5-72HGD-605M LR7-72HGD-610M LR7-72HGD-615M LR5-72HGD-620M
Maximum power (Pmax/W) 460.6 464.4 4688.2 472.0
Open-circuit voltage (Voc/V) 49.84 49.94 50.04 50.15
Short circuit current (Isc/A) 11.74 14.61 11.86 11.92
Peak power voltage (Vmp/V) 41.82 41.92 42.03 42.13
Peak power current (Imp/A) 11.02 11.08 11.14 11.21

NOCT: Normal operating cell temperature

Mechanical Load Capacity

Maximum static load on the front (such as snow and wind) 5400Pa
Maximum static load on the back (such as wind) 2400Pa
Hail test Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

Temperature coefficient of short circuit current (Isc) +0.045%/℃
Temperature coefficient of open circuit voltage (Voc) -0.230%/℃
Temperature coefficient of peak power (Pmax) -0.280%/℃

STC: Standard test conditions

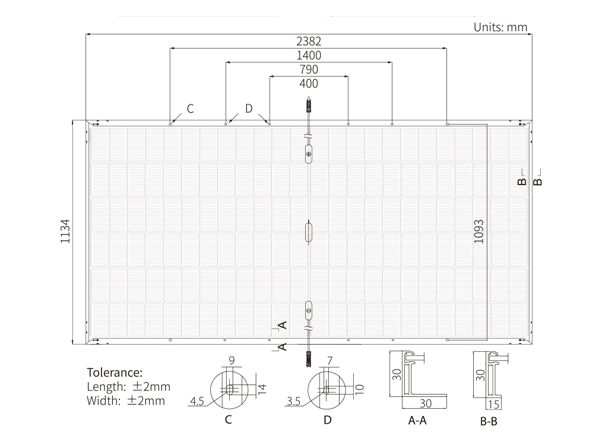

LR5-72HGD - Detail Parameters

Mechanical Parameters

Layout 144（6×24）
Junction box Split junction box, IP68, 3 diodes
Weight 33.5kg
Size 2382×1134×30mm
Packaging 36pcs./pallet
144pcs./20GP
720pcs./40 GP

Electrical Performance Parameters (STC Test)

Module Model LR5-72HGD-605M LR5-72HGD-610M LR5-72HGD-615M LR5-72HGD-620M
Maximum power (Pmax/W) 575 580 585 590
Open-circuit voltage (Voc/V) 51.30 51.40 51.52 51.63
Short circuit current (Isc/A) 14.14 14.22 14.30 14.38
Voltage at Maximum Power (Vmp/V) 43.11 43.22 43.33 43.44
Current at Maximum Power (Imp/A) 13.34 13.42 13.51 13.59

STC: Standard test conditions

Electrical Performance Parameters (NOCT Test)

Module Model LR7-72HGD-575M LR7-72HGD-580M LR7-72HGD-585M LR7-72HGD-590M
Maximum power (Pmax/W) 437.7 441.5 445.3 449.1
Open-circuit voltage (Voc/V) 48.75 48.86 48.96 49.07
Short circuit current (Isc/A) 11.35 11.42 11.48 11.55
Voltage at Maximum Power (Vmp/V) 40.97 41.07 41.18 41.28
Current at Maximum Power (Imp/A) 10.68 10.75 10.82 10.89

NOCT: Normal operating cell temperature

Mechanical Load Capacity

Maximum static load on the front (such as snow and wind) 5400Pa
Maximum static load on the back (such as wind) 2400Pa
Hail test Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

Temperature coefficient of short circuit current (Isc) +0.045%/℃
Temperature coefficient of open circuit voltage (Voc) -0.230%/℃
Temperature coefficient of peak power (Pmax) -0.280%/℃

STC: Standard test conditions
