Module Power
Module Efficiency
Product Warranty
Power Warranty
Core Advantages
Smart Soldering
Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.
Optimized Module Size
M10 wafer and 54 cell design, fully considering the size and weight of modules in distributed applications
Smart Module Packaging and Logistics
Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.
Optimized Electrical Parameters
The working current is about 13A, which is perfectly adapted to mainstream string inverters.
Gallium-doped Technology
Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.
Detail Parameters
Mechanical Parameters
| Layout | 108（6×18 |
| Junction box | Split junction box, IP68, 3 diodes |
| Weight | 20.8kg |
| Size | 1722×1134×30mm |
| Packaging | 36 pcs./pallet 216 pcs./20GP 936 pcs./40 GP |
Electrical Performance Parameters (STC Test)
| Module Model | LR5-54HPH-410M | LR5-54HPH-415M | LR5-54HPH-420M |
| Maximum power (Pmax/W) | 410 | 415 | 420 |
| Open-circuit voltage (Voc/V) | 37.25 | 37.50 | 37.75 |
| Short circuit current (Isc/A) | 13.88 | 13.94 | 14.01 |
| Peak power voltage (Vmp/V) | 31.25 | 31.49 | 31.73 |
| Peak power current (Imp/A) | 13.12 | 13.18 | 13.24 |
STC: Standard test conditions
Electrical Performance Parameters (NOCT Test)
| Module Model | LR5-54HPH-410M | LR5-54HPH-415M | LR5-54HPH-420M |
| Maximum power (Pmax/W) | 306.5 | 310.2 | 313.9 |
| Open-circuit voltage (Voc/V) | 35.02 | 35.26 | 35.49 |
| Short circuit current (Isc/A) | 11.22 | 11.27 | 11.32 |
| Peak power voltage (Vmp/V) | 29.03 | 29.25 | 29.47 |
| Peak power current (Imp/A) | 10.56 | 10.60 | 10.65 |
NOCT: Normal operating cell temperature
Mechanical Load Capacity
| Maximum static load on the front (such as snow and wind) | 5400Pa |
| Maximum static load on the back (such as wind) | 2400Pa |
| Hail test | Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
| Temperature coefficient of short circuit current (Isc) | +0.050%/℃ |
| Temperature coefficient of open circuit voltage (Voc) | -0.265%/℃ |
| Temperature coefficient of peak power (Pmax) | -0.340%/℃ |
STC: Standard test conditions
Detail Parameters

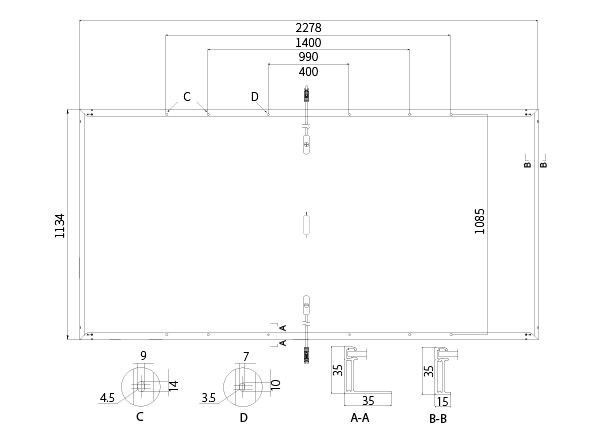

Mechanical Parameters
| Layout | 144（6×24） |
| Junction box | Split junction box, IP68, 3 diodes |
| Weight | 27.5kg |
| Size | 2278×1134×35mm |
| Packaging | 31pcs./pallet 155 pcs./20GP 620 pcs./40 GP GP |
Electrical Performance Parameters (STC Test)
| Module Model | LR5-72HPH-550M | LR5-72HPH-555M | LR5-72HPH-560M |
| Maximum power (Pmax/W) | 550 | 555 | 560 |
| Open-circuit voltage (Voc/V) | 49.80 | 49.95 | 50.10 |
| Short circuit current (Isc/A) | 13.98 | 14.04 | 14.10 |
| Voltage at Maximum Power (Vmp/V) | 41.95 | 42.10 | 42.25 |
| Current at Maximum Power (Imp/A) | 13.12 | 13.19 | 13.26 |
STC: Standard test conditions
Electrical Performance Parameters (NOCT Test)
| Module Model | LR5-72HPH-550M | LR5-72HPH-555M | LR5-72HPH-560M |
| Maximum power (Pmax/W) | 411.1 | 414.8 | 418.6 |
| Open-circuit voltage (Voc/V) | 46.82 | 46.97 | 47.11 |
| Short circuit current (Isc/A) | 11.31 | 11.35 | 11.40 |
| Voltage at Maximum Power (Vmp/V) | 38.97 | 39.11 | 39.25 |
| Current at Maximum Power (Imp/A) | 10.56 | 10.61 | 10.67 |
NOCT: Normal operating cell temperature
Mechanical Load Capacity
| Maximum static load on the front (such as snow and wind) | 5400Pa |
| Maximum static load on the back (such as wind) | 2400Pa |
| Hail test | Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
| Temperature coefficient of short circuit current (Isc) | +0.050%/℃ |
| Temperature coefficient of open circuit voltage (Voc) | -0.265%/℃ |
| Temperature coefficient of peak power (Pmax) | -0.340%/℃ |
STC: Standard test conditions
